CPC coated composite backsheet

Product Description：

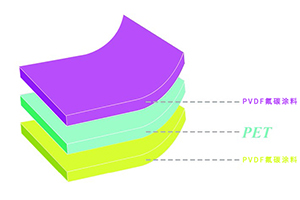

CPC coated composite backsheet, a milky-white backsheet film with multi-layer structure, is a composite solar backsheet coated with fluorine-containing resin PVDF on both sides of PET substrate and cured, and it is a high-performance backsheet applied to solar cell encapsulation materials. The PET layer guarantees the mechanical strength performance, electrical insulation performance and water vapor barrier performance of the material, while the two-layer fluorine resin structure ensures the backsheet's excellent weather resistance, solvent wipe resistance and yellowing resistance.

The product can well protect the cells from high-temperature lamination process, while the fluorine resin coated on the inner side has high visible light reflectivity, which helps to improve the photoelectric conversion efficiency of PV modules.

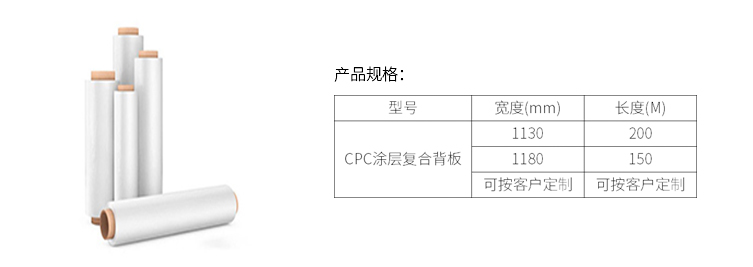

Product Mix：

Product Features：

●Excellent resistance to UV, humidity and heat aging, weathering performance

●High barrier properties, effectively blocking the entry of water vapor and corrosive gases

●High insulation, high breakdown voltage strength and volume resistance

●High mechanical strength at high temperature

●Excellent thermal stability, low thermal shrinkage

●Excellent bonding and encapsulation properties with EVA films

●High total solar reflectivity

KPC composite backsheet

Product Description：

Adopting the composite process, the PVDF fluorocarbon film and the intermediate PET base film are laminated together by adhesive. The inner PVDF film protects PET from UV corrosion, and at the same time is specially treated to bond better with the encapsulation adhesive film, while the outer PVDF fluorocarbon coating protects the backside of the component from moisture, heat and UV erosion.

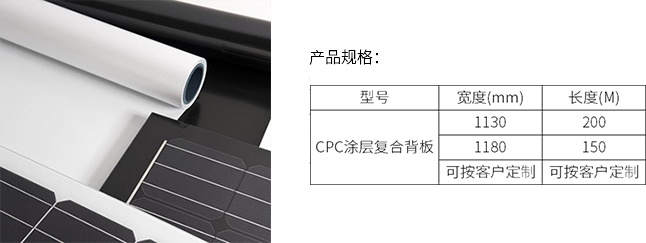

Product Mix：

Product Features：

●Weather, aging, and tear resistance.

●It can be well insulated from air.

●Good insulation, dimensional stability.

●Can be perfectly bonded with EVA adhesive to effectively protect the service life of battery components.

KPK composite backsheet

Product Description：

Adopting composite process, PVDF fluorocarbon film and the intermediate layer PET base film are composited together by adhesive. The inner PVDF film protects PET from UV corrosion, and at the same time is specially treated to bond better with the encapsulation adhesive film, while the outer PVDF fluorocarbon film protects the backside of the component from moisture, heat and UV erosion.

Product Mix：

Product Features：

●Weather, aging, and tear resistance.

●It can be well insulated from air.

●Good insulation, dimensional stability.

●Can be perfectly bonded with EVA adhesive to effectively protect the service life of battery components.
