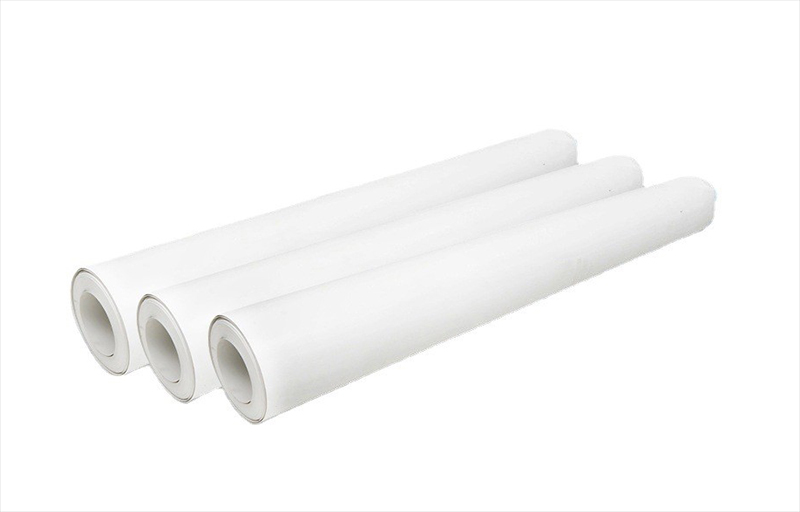

TPO Waterproofing Membrane

Product Description

TPO waterproofing roll-roofing that is thermoplastic polyolefin waterproofing roll-roofing to the use of advanced polymerization technology will be ethylene-propylene (PE) rubber durability and polypropylene weldability combined with the addition of antioxidants, antioxidants, softeners made of new polymer waterproofing roll-roofing. Can be produced, fabric reinforced P class, with fiber backing L class, no composite homogeneous sheet H class and maintenance of self-adhesive butyl TPO membrane. Executive standard: GB 27789-2011 "thermoplastic polyolefin (TPO) waterproofing membrane".

Leave a message

Product Parameters

Product Features:

●Extra-long weathering and service life: no plasticizers, extra-long aging resistance.

●Excellent low-temperature performance: it remains flexible at -40℃, which can meet the requirements for use in extremely cold regions.

●Corrosion resistance: superb chemical and biological corrosion resistance, can meet the requirements of use in the environment of acid, alkali and salt.

●Root puncture resistance: Dense molecular structure and superb joint strength give it excellent physical root-blocking ability;

●Energy saving and environmental protection: The light-colored surface has excellent reflectivity, which reflects most of the sunlight radiation and reduces energy consumption.

●Various colors: A wide range of colors other than conventional light colors are available to beautify the roofing environment.


Scope of Application:

Suitable for industrial and civil buildings, public buildings and other types of roof waterproofing projects. Enhanced roll-roofing for large industrial buildings, public buildings using mechanically fixed roof waterproofing system, especially for steel roofing. Backing type coil is suitable for grass-roots level using adhesive full bonding construction of roofing waterproofing project. Homogeneous membrane is mainly used as an additional waterproofing layer. Repair self-adhesive membrane is mainly used for metal roof waterproofing repair works.


Product Classification:

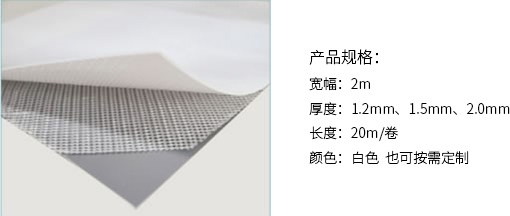

Thermoplastic polyolefin (reinforced P-type) TPO waterproofing membrane


1-2


Fabric within the reinforced P class TPO waterproofing roll-roofing, by 2 layers of TPO sheet and polyester mesh cloth through the extrusion calendering process.

Mainly used in mechanical fixed TPO single-ply roofing system waterproofing layer.


Typical application:Waterproofing systems for renovated roofs, waterproofing systems for metal roofs, waterproofing systems for concrete roofs.

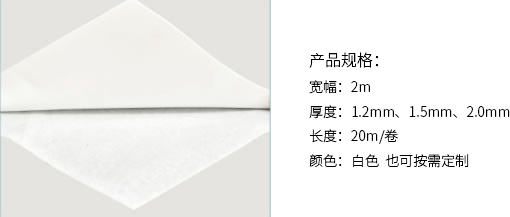

Thermoplastic polyolefin (reinforced L-type) TPO waterproofing membrane


2-2


With fiber backing L class TPO waterproofing roll-roofing, that is, in the TPO sheet back composite layer of polyester non-woven thermoplastic polyolefin TPO waterproofing roll-roofing.

Mainly used for TPO full adhesive roofing system.


Typical application:Waterproofing systems for renovated roofs, waterproofing systems for metal roofs, waterproofing systems for concrete roofs

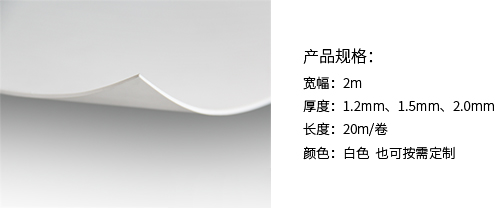

Thermoplastic polyolefin (H-type) TPO waterproofing membrane


3-2


Class H TPO waterproofing roll-roofing material, made of single-layer TPO sheet through extrusion calendering process.

Mainly used in various types of TPO roofing detail node construction.


Typical application:Construction of detail nodes for renovation roof waterproofing systems, metal roof waterproofing systems, concrete roof waterproofing systems, etc.

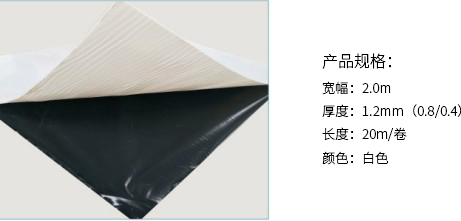

Thermoplastic polyolefin (repair self-adhesive) TPO waterproofing membrane


4-3


Repair special self-adhesive TPO waterproofing roll-roofing material, is designed for color steel roofing or concrete roof repair and research and development. In the thermoplastic polyolefin TPO sheet bottom surface covered with extruded butyl adhesive self-adhesive layer and isolation membrane waterproofing roll-roofing material.


Typical application:Construction of detail nodes for metal roof waterproofing systems, renovation roof waterproofing systems, metal roof waterproofing systems, and concrete roof waterproofing systems.
